ASUS ROG STRIX Z690-A GAMING WIFI Hovedkort

Name: ASUS ROG STRIX Z690-A GAMING WIFI Hovedkort
Brand: ASUS
SKU: 1198159
Availability: Discontinued

Av ASUS

Produktinfo

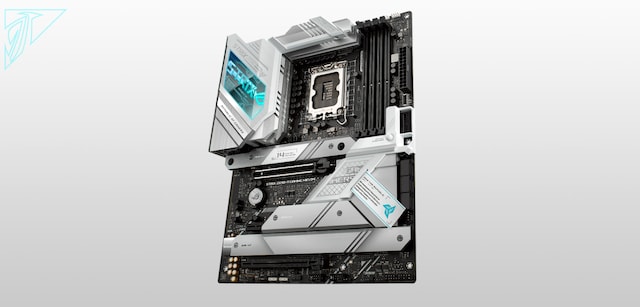

ASUS ROG STRIX Z690-A GAMING WIFI, LGA1700 Motherboard

ROG STRIX Z690-A GAMING WIFI D4
The ROG Strix Z690-A Gaming WiFi D4 motherboard deploys robust power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors, all orchestrated by ASUS-exclusive intelligent controls that deliver advanced user experiences. Meanwhile, onboard WiFi 6 and ample PCIe® 4.0 M.2 slots bring the speed that you need, and DIY-friendly innovations help simplify the PC building process. To top it all off, Strix Z690-A Gaming WiFi D4 dazzles with customizable RGB lighting and a refined brushed-metal finish.
All-round Performance - ROG Strix Z690-A Gaming WiFi D4 provides up-rated power delivery and optimized cooling to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings, while Two-Way AI Noise Cancelation ensures crystal-clear in-game communication. ROG Strix Z690-A Gaming WiFi D4 is armed with all the essentials required to create a gaming PC with top-tier performance.

• Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
• Optimal Power Solution: 16+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
• High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
• Intelligent Control:  ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe®Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Spesifikasjoner

Generelt
Modell	ROG STRIX Z690-A GAMING WIFI D4
Produktserie	ASUS
Garanti (måneder)	36
EAN	4711081446460

Hovedkort
Prosessorsokkel	LGA1700-sokkel
Støttet RAM (registrert eller bufret)	Ikke-bufret
Støttet RAM-integritetskontroll	Ikke-ECC
Produktformfaktor	ATX
Støttet RAM-teknologi	DDR4 SDRAM
RAM-spor	4 DIMM-spor
Brikkesett type	Intel Z690
Merknader om kompatible prosessorer	Støtter 12.-generasjons Intel Core / Pentium Gold / Celeron
Strømkontakter	24-pin hovedstrømforsyningskontakt, 2 x 8-pins ATX12 V-kontakter
Støttet RAM-hastighet	2800 MHz, 3000 MHz, 3733 MHz (O.C.), 4266 MHz (O.C.), 3466 MHz (O.C.), 4800 MHz (O.C.), 2933 MHz, 4000 MHz (O.C.), 3600 MHz (O.C.), 4700 MHz (O.C.), 2133 MHz, 4500 MHz (O.C.), 2400 MHz, 2666 MHz, 3333 MHz (O.C.), 4600 MHz (O.C.), 5000 MHz (O.C.), 3400 MHz (O.C.), 5333 MHz (O.C.), 3200 MHz, 3866 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 3300 MHz (O.C.)

Hovedkortegenskaper
BIOS Type	AMI
Maskinvarefunksjoner	CrashFree BIOS 3, DIY Friendly Design, ASUS Aura Sync, Sonic Studio III, Intel Turbo Boost Max Technology 3.0, ASUS Fan Xpert 4, ASUS EZ DIY, 16+1 Phase Power Design, M.2-kjølelegeme, ASUS OptiMem III, Sonic Radar III, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Armoury Crate, ASUS EPU (Energy Processing Unit), ASUS TPU (TurboV Processing Unit), Formontert I/O-skjerm, ProCool II Power Connector, ASUS SafeSlot, 6 Layer PCB, FlexKey-knapp
BIOS-egenskaper	UEFI BIOS, MemTest86, ASUS EZ Flash 3
Sov/Våkne	Wake on LAN (WOL), Våkne ved PME

Grensesnitt
USB / FireWire-portskonfigurasjon (aktiv)	1 x USB-C Gen 2x2 + 1 x USB-C Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0
Lagerporter	6 x SATA-600 (RAID), 4 x M.2
USB / FireWire-portskonfigurasjon (headere)	1 x USB-C Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Lager	M.2-sokkel, Serial ATA-600 (RAID)
USB / FireWire	USB-C Gen2, USB 3.2 Gen 1, USB-C Gen 2x2, USB 3.2 Gen 2

Videoutgang
Type	Grafikkadapter (CPU kreves)

Lydutgang
Audio Codec	SupremeFX (ALC4080)
Type	Lydkort
Lyd	Høydefinisjonslyd (8-kanals)
Tilpassede standarder	High Definition Audio, DTS Sound Unbound

Kabeldetaljer
Medfølgende kabler	4 x Seriell ATA-kabel

Diverse
Produkttype	Hovedkort
Inkludert tilbehør	1 x M.2 gummipakke, Kabelfestebånd, ROG-takkekort, ASUS Wi-Fi bevegende antenne, ROG-nøkkelkjede, ROG viftemerker, M.2 Q-Latch

RAM
Egenskaper	Dobbeltkanalsminnearkitektur, Intel Extreme Memory Profiles (XMP)

Nettverkstilknytning
Datakjedeprotokoll	IEEE 802.11a, 2.5 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, 802.11ax, IEEE 802.11g, IEEE 802.11b
Nettverk	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Utvidelsesspor
Utvidelsesspor	4 x 288-pins DIMM, 1 x CPU, 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4-modus), 1 x PCIe 5.0 x16

Lagergrensesnitt
Lagergrensesnitt	PCIe 4.0 -kontakter: 3 x M.2, SATA-600 / PCIe 4.0 -kontakter: 1 x M.2, SATA-600 -kontakter: 6 x 7-pin seriell ATA - RAID

Grensesnitt medfølger
Grensesnitt	1 x lydutlinje (bakre) - minijakk, 1 x lydutlinje (senter/subbasshøyttaler) - minijakk, 1 x LAN (2.5Gigabit Ethernet), 1 x USB-C Gen2x2, 1 x lydinnlinje - minijakk, 2 x USB 2.0, 1 x DisplayPort, 1 x USB-C Gen2, 4 x USB 3.2 Gen 1, 1 x mikrofon - minijakk, 1 x lydutlinje - minijakk, 1 x HDMI, 2 x USB 3.2 Gen 2

Interne overflater
Interne overflater	1 x SPDIF-utgang - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header, 1 x USB-C Gen 2x2 - header, 1 x Thunderbolt - header

Programvare
Inkludert programvare	ASUS AI Suite III, WinRAR, ROG CPU-Z, ROG GameFirst VI, Sonic Suite Companion, ASUS AURA Creator, MyAsus, ASUS EZ Flash 3, Sonic Studio Virtual Mixer, Drivers & Utilities, AIDA64 Extreme (60-dagersprøve), Antivirus, ASUS Turbo App
