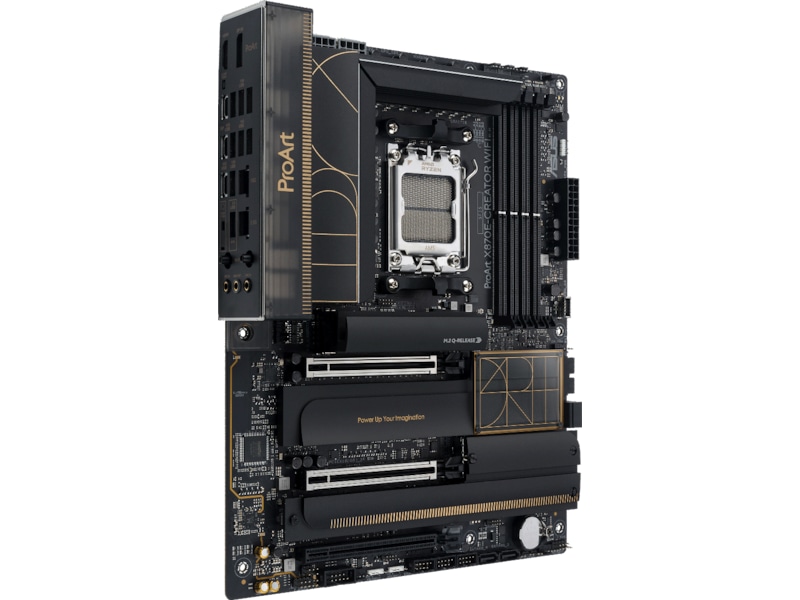

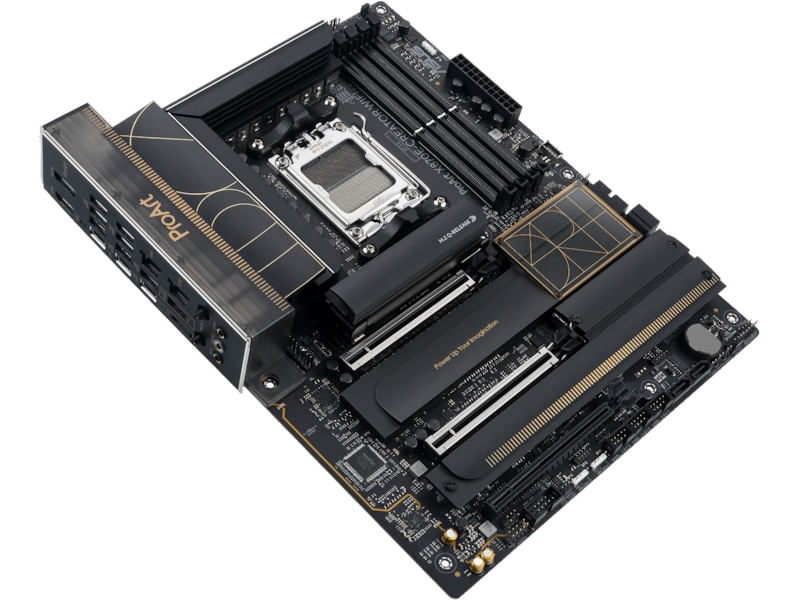

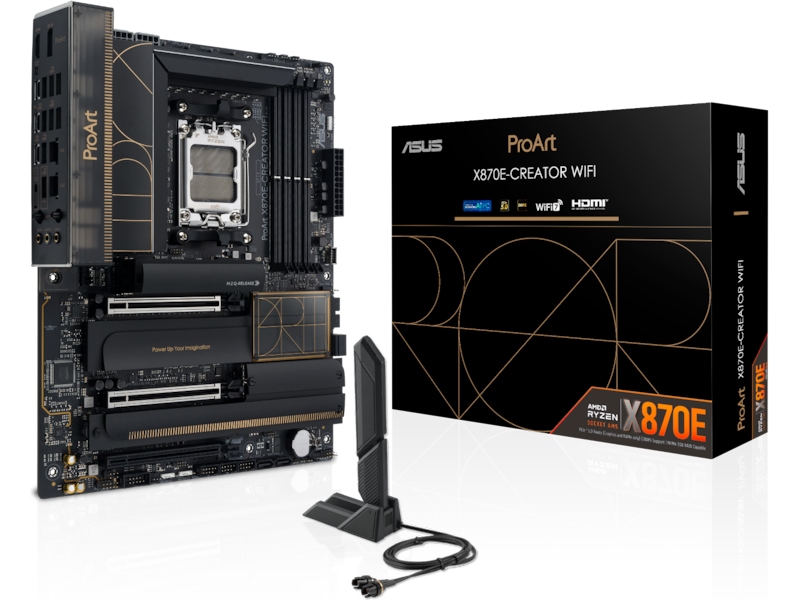

| Modell | ProArt X870E-CREATOR WIFI |
|---|---|
| Produktserie | ASUS |
| Garanti (måneder) | 24 |
| EAN | 4711387730775 |
| Støttet RAM-teknologi | DDR5 SDRAM |
|---|---|
| Merknader om kompatible prosessorer | Støtter Ryzen 7000/8000/9000-serien |
| Støttet RAM (registrert eller bufret) | Ikke-bufret |
| Produktformfaktor | ATX |
| Brikkesett type | AMD X870E |
| RAM-spor | 4 DIMM-spor |
| Prosessorsokkel | Socket AM5 |
| Støttet RAM-hastighet | 4000 MHz (O.C.) |
| Støttet RAM-integritetskontroll | On-die ECC, ECC, Ikke-ECC |
| Strømkontakter | 24-pin hovedstrømforsyningskontakt, 2 x 8-pins ATX12 V-kontakter |
| BIOS Type | AMI |
|---|---|
| BIOS-egenskaper | ASUS UEFI BIOS EZ Mode, ASUS EZ Flash 3, UEFI BIOS |
| Sov/Våkne | Våkne ved PME, Wake on LAN (WOL) |
| Maskinvarefunksjoner | BIOS FlashBack-knapp, Q-Antenna, ESD Guards, PCIe Slot Q-Release, Q-DIMM, LANGuard, Clear CMOS Button, M.2 Q-frigivelse, ASUS Enhanced Memory Profile (AEMP), ASUS Stainless Steel Back I/O, ASUS Q-Design, AI Cooling II, ASUS ProCool, Quick Charge 4+, VRM-kjøledesign, ASUS Q-Connector, ASUS SafeSlot, 8 Layer PCB, M.2 Q-Slide, M.2 Q-Latch, Q-LED, ASUS DIGI+ VRM, ASUS SafeDIMM, ASUS EZ DIY, 16+2+2 Phase Power Design, Formontert I/O-skjerm, ASUS 5X Protection III, M.2-kjølelegeme, AI Networking II, Preboot eXecution Environment (PXE), ASUS Enhanced DRAM Overcurrent Protection, CrashFree BIOS 3, ASUS Overvoltage Protection, AI overklokking, Q-Release Slim, M.2 kjølebakplate, Q-Slot, Core Flex-teknologi, ASUS Aura Sync |
| RAID-funksjoner | AMD RAID Xpert2 Technology |
|---|---|
| USB / FireWire-portskonfigurasjon (aktiv) | 2 x USB4 + 1 x USB-C 3.2 Gen 2 + 7 x USB 3.2 Gen 2 + 1 x USB 2.0 |
| USB / FireWire-portskonfigurasjon (headere) | 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 |
| Lagerporter | 4 x SATA-600 (RAID), 4 x M.2 |
| Lager | Serial ATA-600 (RAID), M.2-sokkel |
| USB / FireWire | USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB4, USB 3.2 Gen 1 |
| Type | Grafikkadapter (CPU kreves) |
|---|
| Tilpassede standarder | High Definition Audio |
|---|---|
| Type | Lydkort |
| Audio Codec | Realtek ALC1220P |
| Lyd | Høydefinisjonslyd (8-kanals) |
| Medfølgende kabler | 4 x Seriell ATA-kabel |
|---|
| Produkttype | Hovedkort |
|---|---|
| Tilpassede standarder | DisplayPort 1.4 |

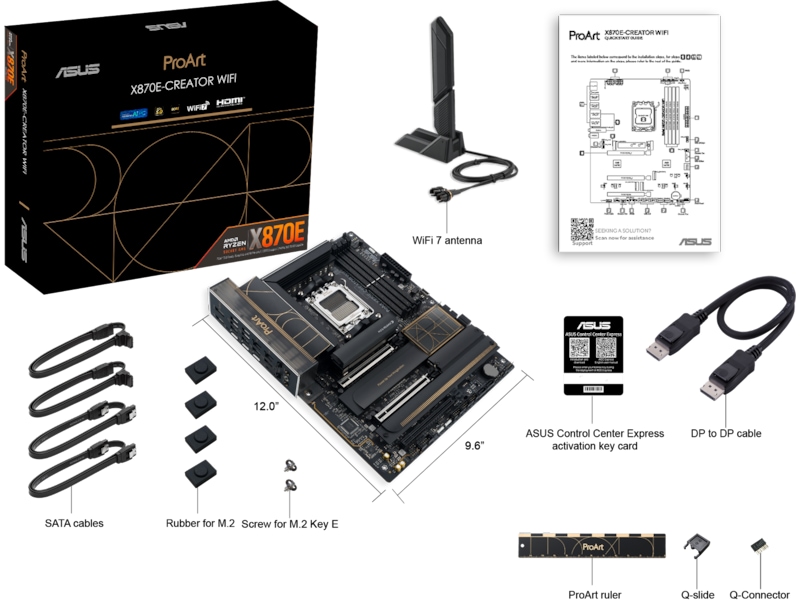

| Inkludert tilbehør | M.2 Q-Slide, Termopute for M.2 SSD, 2 x M.2-gummipakke, ASUS Wi-Fi Q-antenna, ASUS ProArt ruler, ACC Express Activation Key Card, M.2 Q-Latch, Q-Connector |
| Datakjedeprotokoll | IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.4, IEEE 802.11a, 10 Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11n, Gigabit Ethernet, Fast Ethernet, IEEE 802.11b |
|---|---|
| Nettverk | 10 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Utvidelsesspor | 4 x 288-pins DIMM, 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M spor), 2 x PCIe 5.0 x16, 1 x CPU, 1 x PCIe 4.0 x16 (x4-modus), 3 x M.2 socket (2242/2260/2280 M.2 Key M-spor) |
|---|
| Lagergrensesnitt | PCIe 5.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -kontakter: 4 x 7-pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
|---|

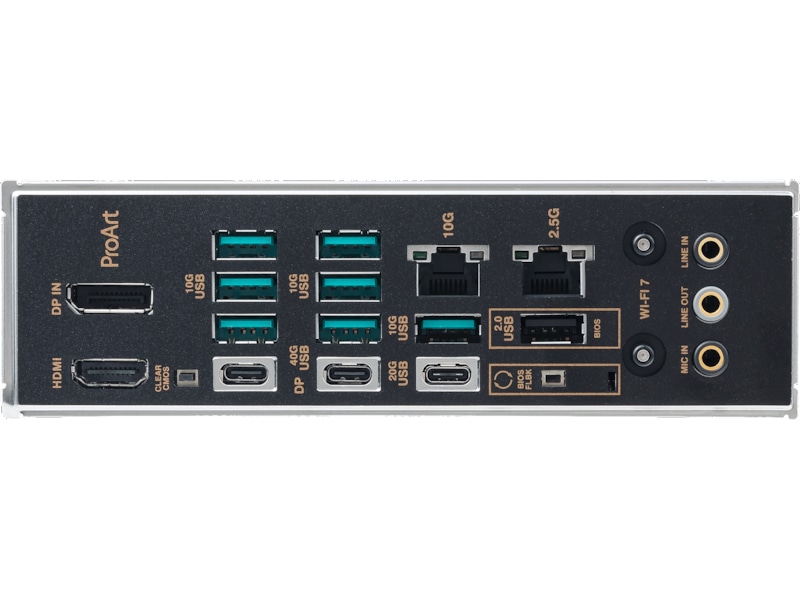

| Grensesnitt | 1 x mikrofon - minijakk, 1 x LAN (10Gigabit Ethernet), 2 x antenne, 1 x HDMI, 1 x lydinnlinje - minijakk, 1 x DisplayPort-inngang, 1 x USB-C 3.2 Gen2x2, 1 x lydutlinje - minijakk, 2 x Thunderbolt 4/DisplayPort/USB4, 1 x LAN (2.5Gigabit Ethernet), 7 x USB 3.2 Gen 2 |
|---|
| Interne overflater | 1 x lyd - header, 1 x seriell - header, 6 x USB 2.0 - header, 1 x USB-C 3.2 Gen 2x2 - header, 2 x USB 3.2 Gen 1 - header |
|---|
| Inkludert programvare | ASUS CPU-Z, ASUS AURA Creator, Adobe Creative Cloud (gratis prøveversjon), USB Wattage Watcher, Armoury Crate, TurboV Core, ASUS GlideX, WinRAR (40 days trial), ASUS DriverHub, ASUS Fan Xpert 4, ASUS Control Center Express, Norton 360 Deluxe (60 dagers prøveversjon), ASUS ProArt Creator Hub, CreationFirst |
|---|
Medlem i Komplett Club? Få 200 poeng for hver godkjent produktanmeldelse. Les mer
Awesome quality, loads of features, 10gbit network adapter is awesome for my nas. 128gb ecc ddr5 with 4 sticks working flawlessly with a 9950x stable for weeks now
Opprinnelig publisert på https://www.asus.comMB went into a Sliverstome RM46-502-I 4U case, with AMD 9950X3D CPU and Asus 5070TI OC GPU. Install and configuration instructions were minimal, with no documentation on POST issues or BIOS settings for UEFI Win 11 Pro install on NVME. Internet no help with too many variations between MFG. MB Bios was at ver. 1203, so I had to scale back install to single RAM stick, 2TB Samsung Pro 990 NVME and hoped system stayed stable until chipset drivers could be loaded. Once loaded got caught in endless reboot loop with windows install wiped out until after Wifi chipset driver installed, then Windows update took over and system became stable enough to complete chipset. drivers install. About 24 hours to load OS
Opprinnelig publisert på https://www.asus.comI've purchased TWO of these. One for my home office and one for my day job. It looks amazing, and is accessible.
